Aoralscan 3
Intraoral ScannerScan Without Limits
Go Wireless
Fast and Stable
Long-lasting Battery Life
Next-level Software Functions
Schedule your initial consultation today and start your journey towards a pain-free, healthier smile. Contact us now!
Intraoral ScannerScan Without Limits
Go Wireless
Fast and Stable
Long-lasting Battery Life
Next-level Software Functions
Fast and Stable
Built-in Wi-Fi 6 technology enables a seamless scan experience with fast and stable data transmission.
Equipped with 3 batteries and a charging hub for non-stop scanning.
Up to 2 hours of continuous scanning for each charge, with 3 batteries included. Enjoy smooth scanning and a seamless workflow with a long battery life.
When finished scanning, you can put the Aoralscan 3 Wireless back onto the cradle to charge.
Wired scan option is included as well
The scanner can adapt to multiple cradles. Pick up the device and switch between multiple chairs.
Faster data post-processing speed. Self-developed,clinic-friendly functions, including Orthodontic Simulation, Model Creator, Temp Design, Indirect Bonding Tray Design, Oral Health Report and Data Track.
The clinical toolkit assists dentists to evaluate and pre-design the scanned data in their own clinic. It facilitates effective communication with dental labs to deliver quality dental work with high efficiency.
Acting as a precision-engineered intermediary, the Cap Scanbody ensures the accurate positioning of the coded scanbody within the surrounding soft tissue, allowing for smooth integration and reliable outcomes. Both the coded scanbody and Cap Scanbody data are digitally transformed into CAD data, which significantly improves alignment accuracy and ultimately increases the success rate of the procedure.

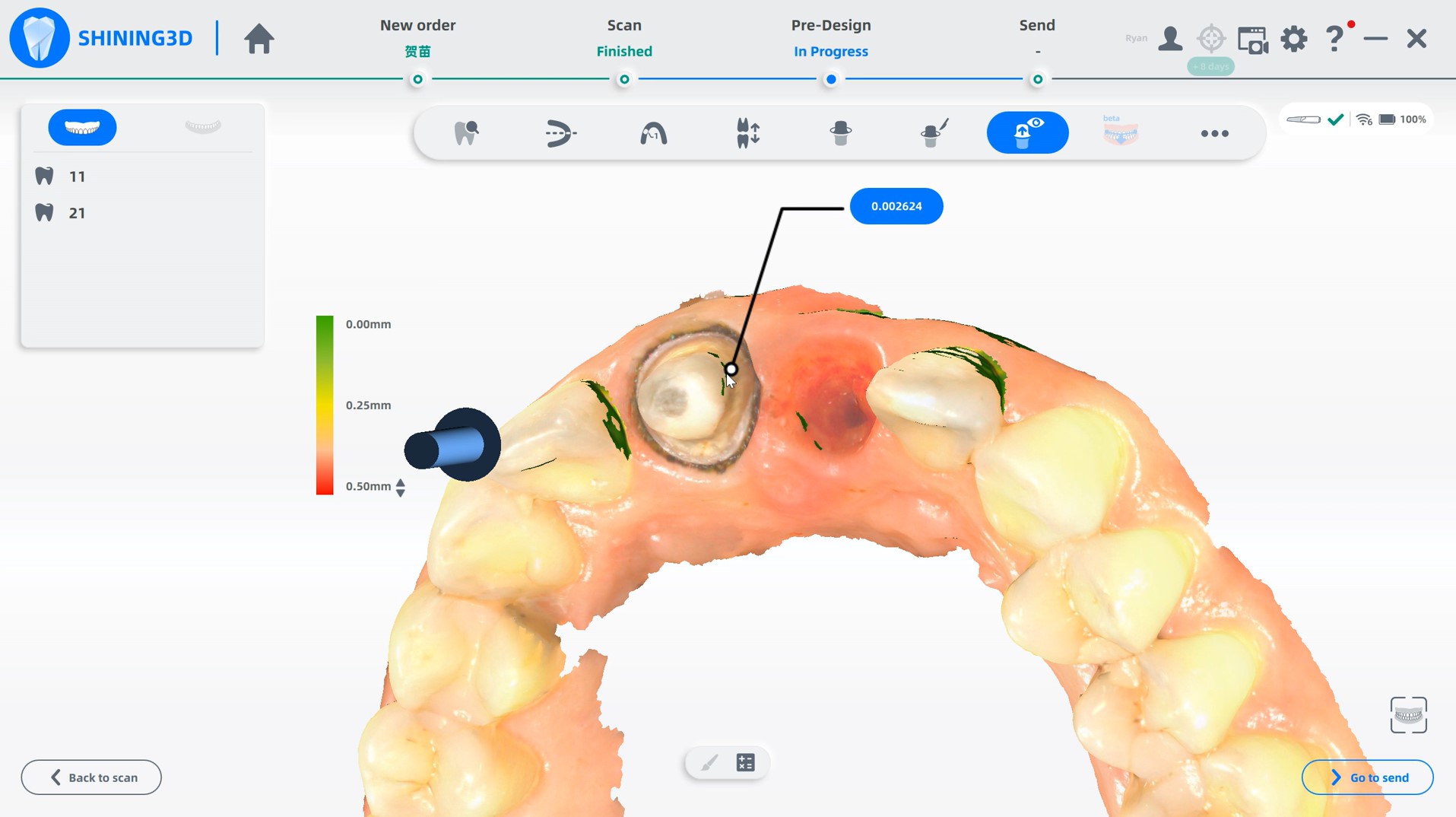

During the scanning process, the undercut value can be displayed for easy judgment by the dentist..

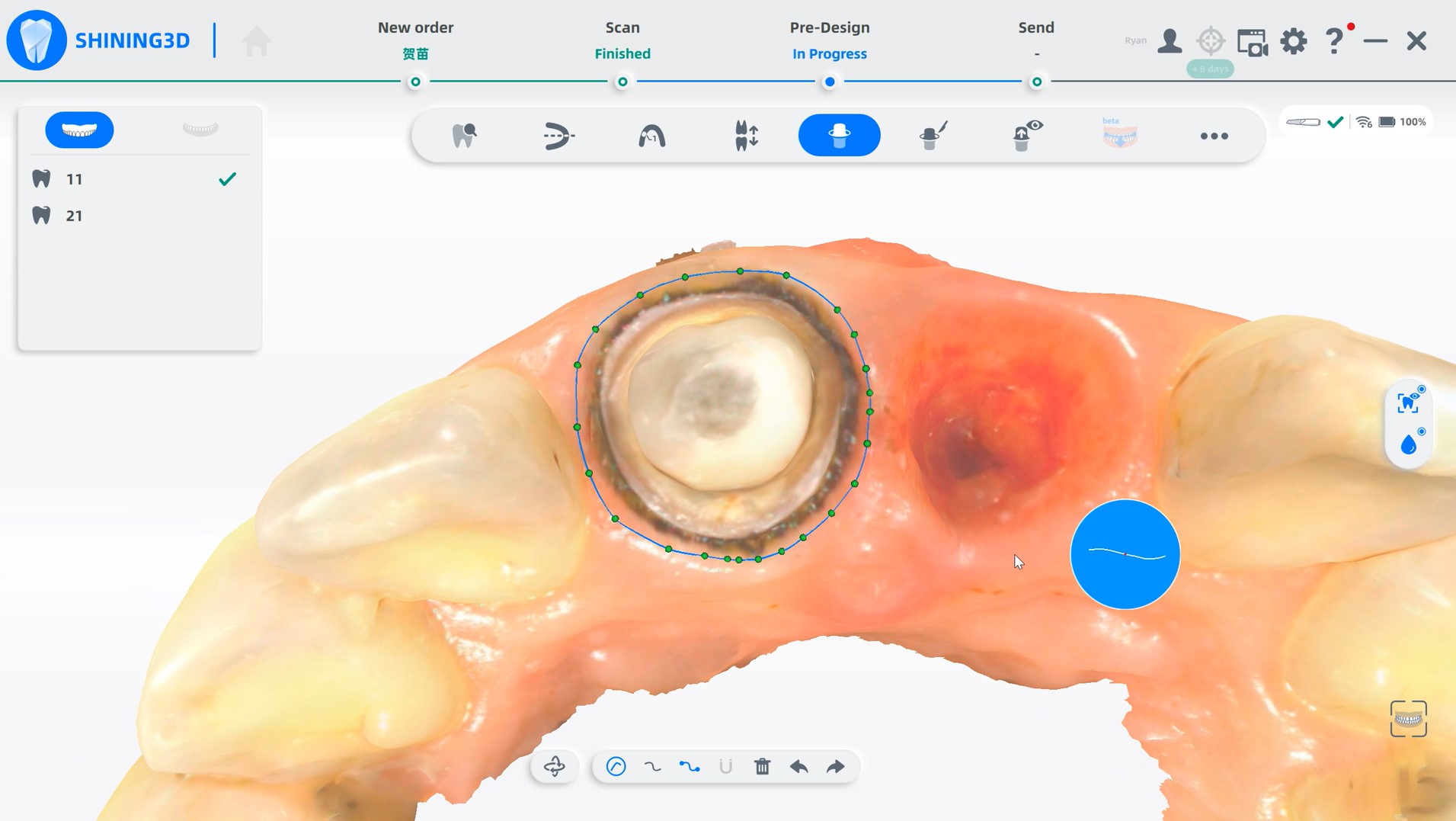

Allows quick identification of margin lines, which helps communication between dentist and technician.
Revolutionize how dentists interact with their patients
Through vivid 3D simulations, dentists can seamlessly illustrate treatment outcomes, enabling patients to visualize and understand anticipated changes.
Oral Health Report
A ConsulReport (Oral health report) is a record created by a dentist after an oral examination. This automatic report includes information on the type of disease, a description, and a treatment plan.
Temporary crowns can be designed and printed efficiently in the office, reducing patient waiting times and providing high-quality care with minimal effort.
Whether you need a nightguard or a retainer, CreSplint software provides you with an accurate, custom-fit design via an intuitive and user-friendly interface that requires minimal training.
CreIBT makes the creation of indirect bonding trays easy. With CreIBT, orthodontists can accurately attach brackets to teeth, all while benefiting from the convenience of direct 3D printing.
With features like curve of Spee, overbite and overjet, molar relationship, Bolton ratio, crowding measurement, and Moyer analysis, these multiple measurement tools offer a comprehensive overview of the teeth.
The ability to compare various intraoral data enables dentists to monitor and manage the treatment progress.
AccuDesign enables users to effortlessly create printable models with a single click, streamlining operations and boosting efficiency. The improved support for ABO base significantly enhances its utility in orthodontic applications. Moreover, with the inclusion of articulators, text, and customizable settings, users have the freedom to craft personalized models.
| Scan Field |
Standard scanner tip: 16mm * 12mm Mini scanner tip: 12mm * 9mm |
| Scan Depth | -2mm to 20 mm from exit surface of tip |
| Scan Tip Sterilization |
Autoclave 100 times 121°C 102.9kPa 30 mins 134°C 205.8kPa 4 mins |
| Scan Tip Heating | 40s instant heating(Anti-fogging) |
| Scan Principle | Non-contact scanning with the structured light |
| Wireless Technology | Wi-Fi 6(802.11a/n/ac/ax) |
| Effective Wireless Range | Same room, up to 5m |
| Battery Life | 2 hours of continuous scanning. 10 days under sleep mode |
| Dimension (L * W * H) | 270±3(L)x50±3(W)x40±3(H)mm(includes battery, tip) |
| Total Weight | 330±20g(includes battery, tip) |
| Output | STL, OBJ, PLY |
| Connector | USB 3.0 |
| Power Input | 12V DC/3A |
| Processor |
Minimum: M2 (8-Core CPU, 10-Core GPU) Recommended: M1 Pro (8-Core CPU, 14-Core GPU) M2 Pro (10-Core CPU, 16-Core GPU) M1 Max (10-Core CPU, 24 or 32-Core GPU) M4(10-Core CPU, 10-Core GPU) |
| RAM | 16GB or higher |
| Hard driver | SSD Recommended: 1T |
| Operation system | Mac OS: Ventura 13 or higher |
| Interface | At least one type C |
| Cpu |
Intel® Core™ i7-11700H Intel® Core™ i7-10700F Minimum：Intel® Core™ i7-8700F Recommend：Intel® Core™ i7-11800H |
| Memory | Recommend：32GB |
| Hard Disk Drive |
Minimum：256GB SSD Recommend：2TB SSD |
| Graphic Card (GPU) | NVIDIA RTX 2060/2070/3060/3070/3080 |
| Operating System | Windows 10/11 Professional (64-bit) |
| Display Resolution | 1920 * 1080, 60Hz or higher |
| I/O Ports | More than 2 type-A USB 3.0 (or higher) ports |
