Premium Intra Oral X-Ray PRIME

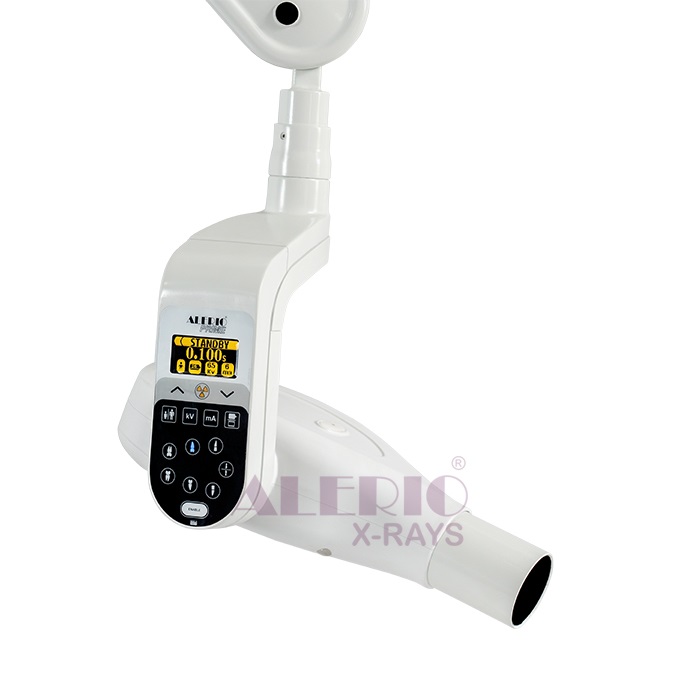

ALERIO DC PRIME is an advanced high frequency DC output Intra-Oral X-Ray compatible with all types of films, phosphor plates, or sensors. The X-ray machine uses an electronic feedback method for control that produces repeatable, crisp dental x-rays. The controls for this unit are located on the Tubehead or can be programmed from a mobile application.
ALERIO DC PRIME Has Two Variants.
- Wall Mount Scissor Arm
- Floor Mount Scissor Arm
General Specification
| Generator | High Frequency (>100kHz Output), DC |
| Control Type | Closed Loop for mA and kV |
| Tube kV | 60kV - 70kV in steps of 1kV |
| Tube mA | 2mA-8mA auto / manual |
| Battery | Li-on Rechargeable |
| Exposure Time | 0.01s-5.0s |
| Focal Spot | >0.4mm IEC |
| Duty Cycle | 1:30 & 3 exposure in Burst mode |
| Leakage Radiation | >0.1mGy in 1 hr |
| Cone Length | >200mm;300mm Optional |
| X-Ray Field Size | Round 60mm Standard, Rectangular 44x35mm Optional |
| Total Filtration | >2mm AI |
| Input Voltage | 90VAC-264VAC |
| Exposure Control | Wired or Wireless Remote |
