Compressed air for CAD CAM Systems

Optimally suited for continuous operation of milling and grinding machines.

Milling and grinding machines place particularly high demands on the compressor in terms of reliable and constant supply of compressed air. Constant oil-free, clean and dry compressed air is the top priority for operation - because the milling machine does not allow any breathers during operation. The CAD CAM compressors from Dürr Dental are optimally adapted to all these requirements.

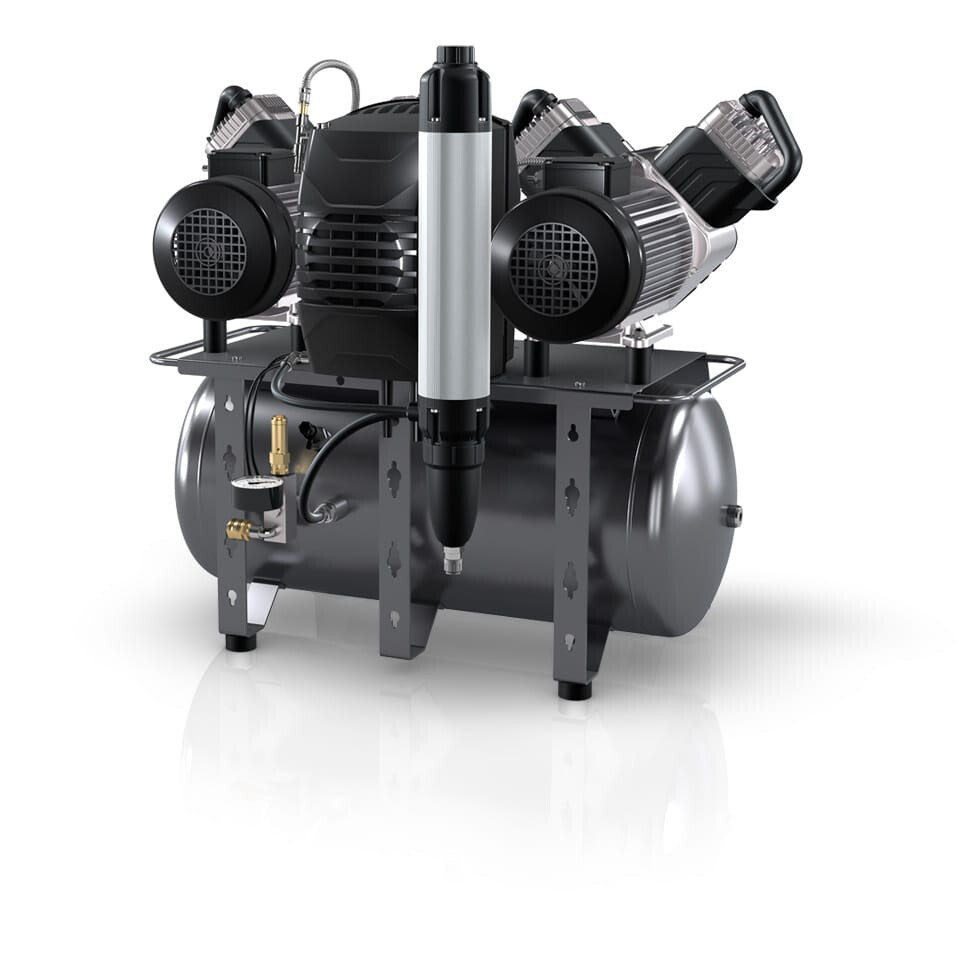

Membrane Drying Unit

The duty cycle of a compressor unit during operation with a milling machine far exceeds the duty cycle in normal dental practice operation. Thanks to the innovative membrane drying system from Dürr Dental, no regeneration times are necessary. This ensures constantly dry compressed air in continuous operation.

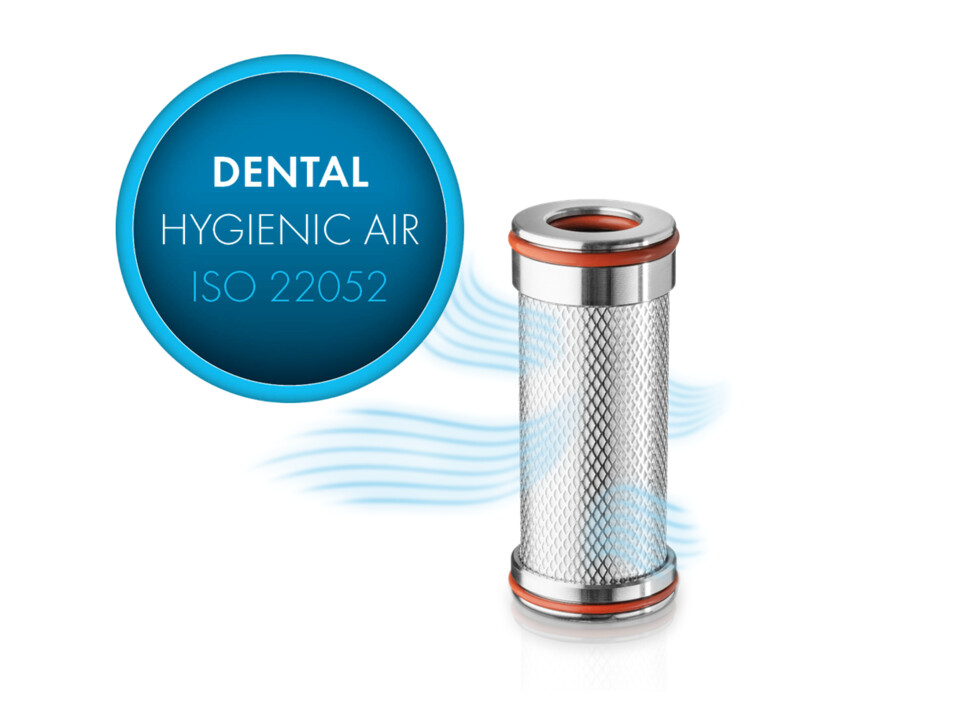

Compressed air quality according to ISO 22052 Chap. 5.3.

Manufacturers of dental milling and grinding machines make clear specifications regarding the quality of the connected compressed air supply in terms of particle, oil and water content. Moist compressed air can cause damage to these devices. Oil can also impair the quality of the milling result. With our membrane drying and bacteria filter, Dürr Dental compressors produce dry and oil-free compressed air – for the optimal result of your work. Dürr Dental CAD CAM compressors supply air of class 2:4:0 in accordance with ISO 8573-1.

Membrane-drying-unit
compressed-air-quality

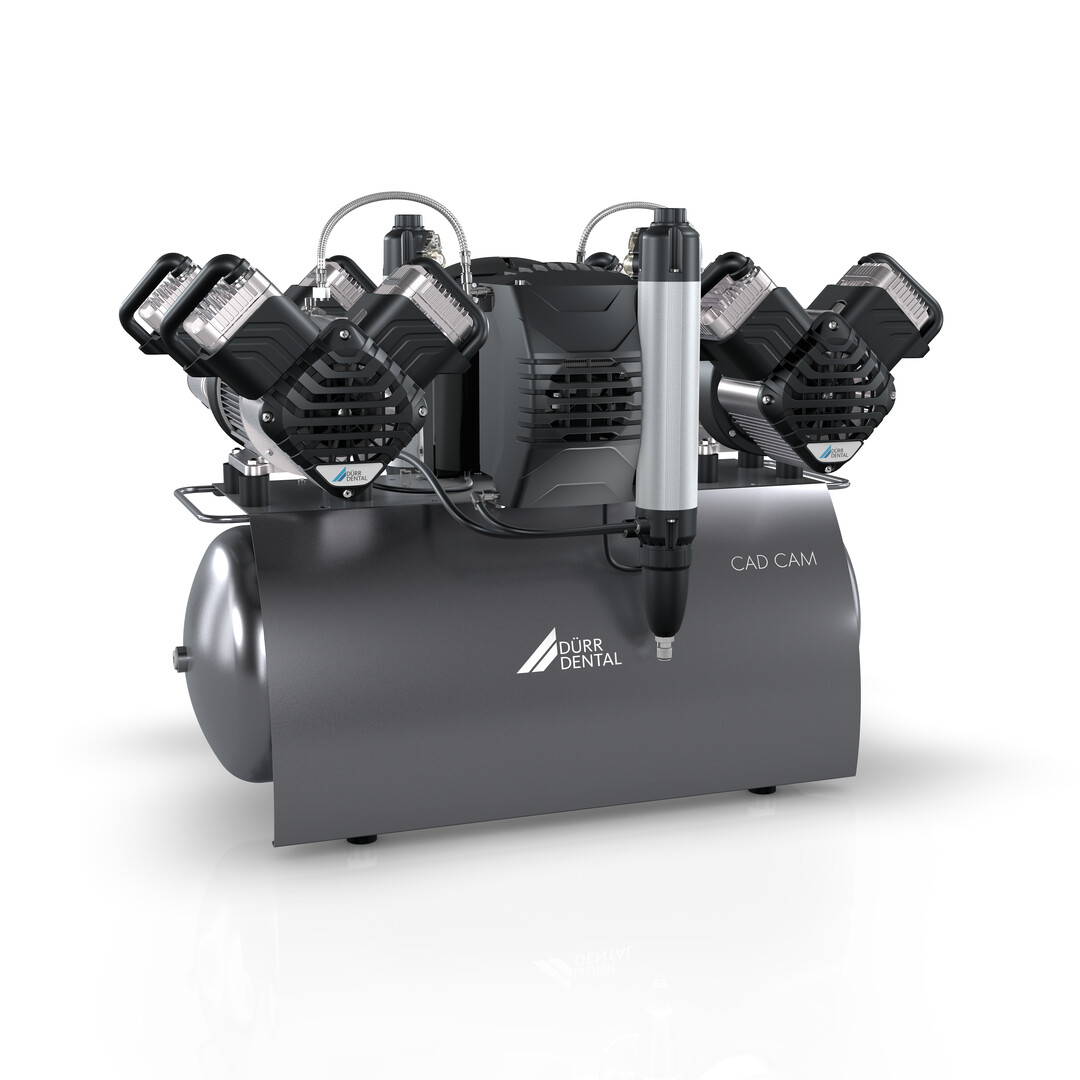

The Tandem Principle

The electronic control of the tandem compressors allows easy adjustment of the pressure range. The two independently operating aggregates ensure operational reliability.

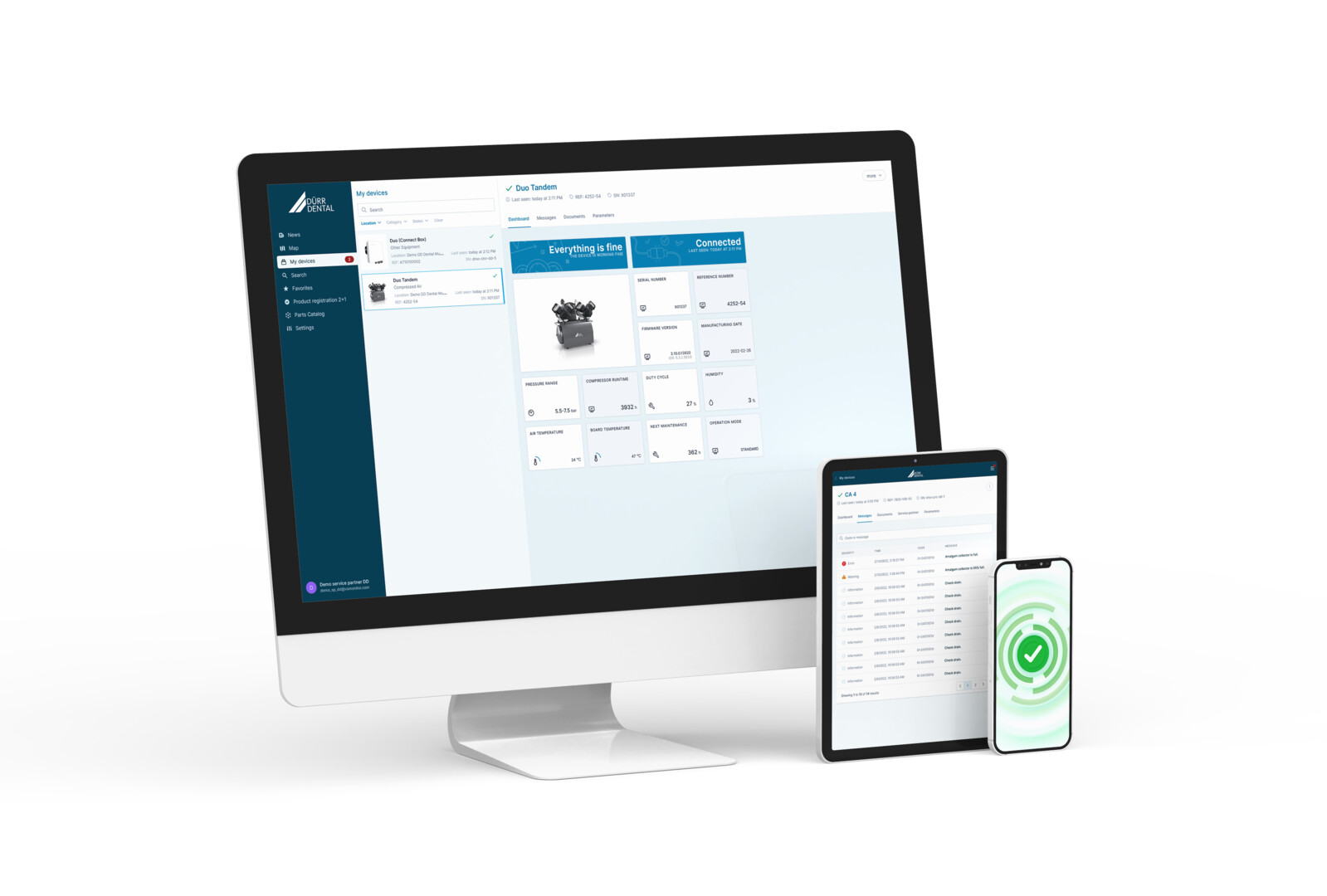

Operational safety with VistaSoft Monitor

With the help of the cloud-based IoT application VistaSoft Monitor, the condition of the CAD CAM compressor can be checked anywhere and at any time. You and participating dealers are also immediately alerted to upcoming maintenance/inspections. If action is required, you will receive an alert immediately.

Smart Power Mode

The Smart Power Mode ensures adaptive and independent control of the aggregates, which continuously takes the individual compressed air consumption into account. The new firmware also offers more flexibility by extending the pressure range setting from 9 to 9.5 bar.

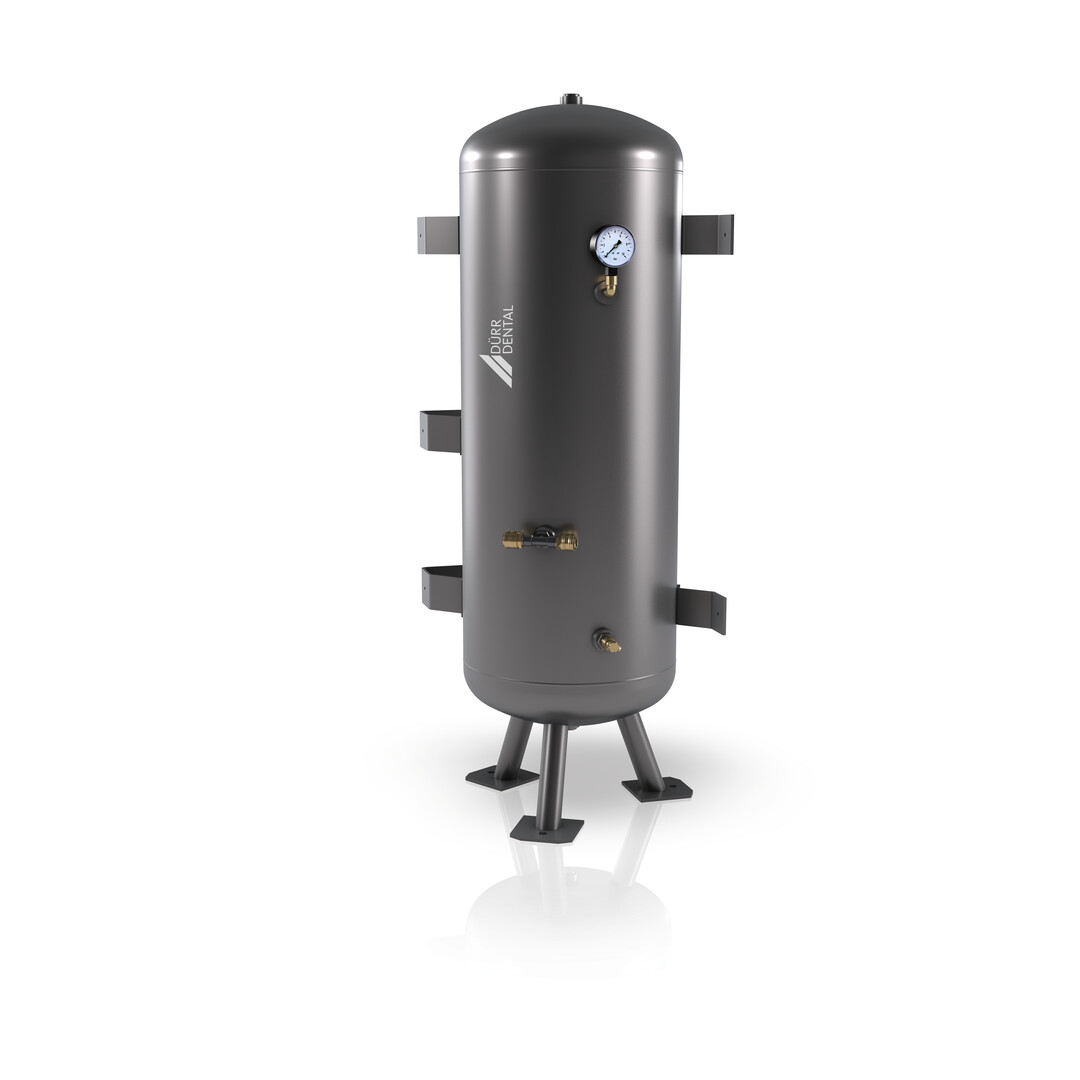

For difficult installation conditions: Buffer tank

Additional buffer volume is required for compressed air line networks with small pipe diameters or long distances between the CAD CAM compressor and milling and grinding machines. The buffer tank ensures a continuous and stable compressed air supply.

THE RIGHT SOLUTION FOR YOUR DENTAL MILLING AND GRINDING SYSTEM:

Amann Girrbach

Product Pressure switch configuration Recommended Dürr Dental compressor
Ceramill Motion 2.3 7.0 - 9.0 bar 4252200054 Duo Tandem 2 units
Ceramill DRS 7.0 - 9.0 bar 4152-54 Duo Tandem 1 unit
Ceramill Matron 7.0 - 9.0 bar 4252200054 Duo Tandem 2 units
Ceramill Matik 7.0 - 9.0 bar 4852500054 Quattro P20 4 units

Datron

Product Pressure switch configuration Recommended Dürr Dental compressor
D1 7.0 - 9.0 bar 4252200054 Duo Tandem 2 units
D5 7.0 - 9.0 bar 4682200054 Quattro Tandem 2 units

Dental Concept Sytems

Product Pressure switch configuration Recommended Dürr Dental compressor
DCX 5.5 - 7.5 bar 4152-54 Duo Tandem 1 unit
DC1, DC3, DC7 8.0–9.5 bar 4252200054 Duo Tandem 2 units

Imes Icore

Product Pressure switch configuration Recommended Dürr Dental compressor
CORiTEC (250i, 350i) 7.0 - 9.0 bar 4252200054 Duo Tandem 2 units
CORiTEC (650i) 7.0 - 9.0 bar 4682200054 Quattro Tandem 2 units
CORiTEC (150i, 150i dry, 150i PRO) 5.5 – 7.5 bar 4152-54 Duo Tandem 1 unit

Ivoclar Vivadent

Product Pressure switch configuration Recommended Dürr Dental compressor
PrograMill PM3, PM5, PM7 7.0 - 9.0 bar 4682500054 Quattro Tandem 2 units

Planmeca

Product Pressure switch configuration Recommended Dürr Dental compressor
PlanMill 30 S, 35, 60 S 5.5 - 7.5 bar 4152-54 Duo Tandem 1 unit

Roland

Product Pressure switch configuration Recommended Dürr Dental compressor
DWX-42W, DWX-50 5.5 - 7.5 bar 4152-54 Duo Tandem 1 unit
DWX-51D, DWX-53D, DWX-53DC 5.5 - 7.5 bar 4152-54 Duo Tandem 1 unit

Sirona

Product Pressure switch configuration Recommended Dürr Dental compressor
inLab MC X5 7.0 - 9.0 bar 4252200054 Duo Tandem 2 units

vhf camfacture AG

Product Pressure switch configuration Recommended Dürr Dental compressor
S5 7.0 - 9.0 bar 4252200054 Duo Tandem 2 units
K5+ 7.0 - 9.0 bar 4252200054 Duo Tandem 2 units
N4+ 5.5 - 7.5 bar 4152-54 Duo Tandem 1 unit
R5 7.0 - 9.0 bar 4252200054 Duo Tandem 2 units

Zirkonzahn

Product Pressure switch configuration Recommended Dürr Dental compressor
M1, M2, M3, M4, M5, M6 7.0 - 9.0 bar 4682200054 Quattro Tandem 2 units

This recommendation applies to a 1:1 connection between the milling and grinding machine and the CAD CAM compressor. If other consumers are present (e.g. workstations for technicians), these have an effect on the correct choice of compressor and must therefore be taken into account accordingly. To avoid pressure fluctuations caused by other air consumers, we recommend operating the milling machine via a separate compressed air network with a dedicated compressor. The pressure range of the CAD CAM compressors is already preset at 7.0-9.0 bar. Additional sound insulation can be ordered for the Duo Tandem CAD CAM compressor.
