Clinic systems – cutting-edge dental compressed air

Technological edge for dental clinics and universities

Clinics need a reliable and steady supply of compressed air and suction – without any compromises. Maximum performance with reliable reserves is essential here. In addition to high-performance suction units, DÜRR DENTAL also offers central compressed air stations with refrigerant type dryer and cyclone separator for up to 130 workplaces per station in clinical settings. The operator benefits from a number of cost advantages and synergy effects resulting from the combined set-up of the coordinated compressed air and suction systems.

First-class compressed air quality

Continuous supply of dry, oil-free and hygienic air, flavourless and odourless, for continuous operation. In addition, our devices are certified as Class IIa medical devices in accordance with the MDR (EU 2017/745). They therefore fulfil all regulatory requirements and offer you security.

Durable components

The compressors are designed for at least 10,000 operating hours. The corresponding bacteria filter ensures hygienic air and long filter-replacement intervals. (At the earliest, the filter only needs to be changed after 3500 operating hours. 10,000 operating hours correspond to about 20 years of service life for an average practice (at 220 working days, 8 h/day, 25% duty cycle)).

First-class
durable-components
Intelligent control system

The intelligent control system ensures high operational safety and reliability and optimises load changes on the individual units, which in turn helps to increase the service life for the entire system.

Central remote monitoring

The central remote monitoring function offers clear and convenient access to messages, operating hours, filter changes, etc. of all DÜRR DENTAL clinic units. Furthermore, a connection can be established with the existing central control station via the integrated network interface.

Intelligent-control-system
central-remote-monitoring
P 6000

For up to 70 workstations with max. 40 users at the same time.

1411/1685
Delivery at 5 bar(l/min)

6 - 8
Pressure range(bar)

89,5/91,7
Noise level dB(A)

P 9000

The unbelievably quiet compressor with a 2-cylinder unit and a 20-litre tank for two users.

2175/2479
Delivery at 5 bar(l/min)

6 - 8
Pressure range(bar)

90,6/93,1
Noise level dB(A)

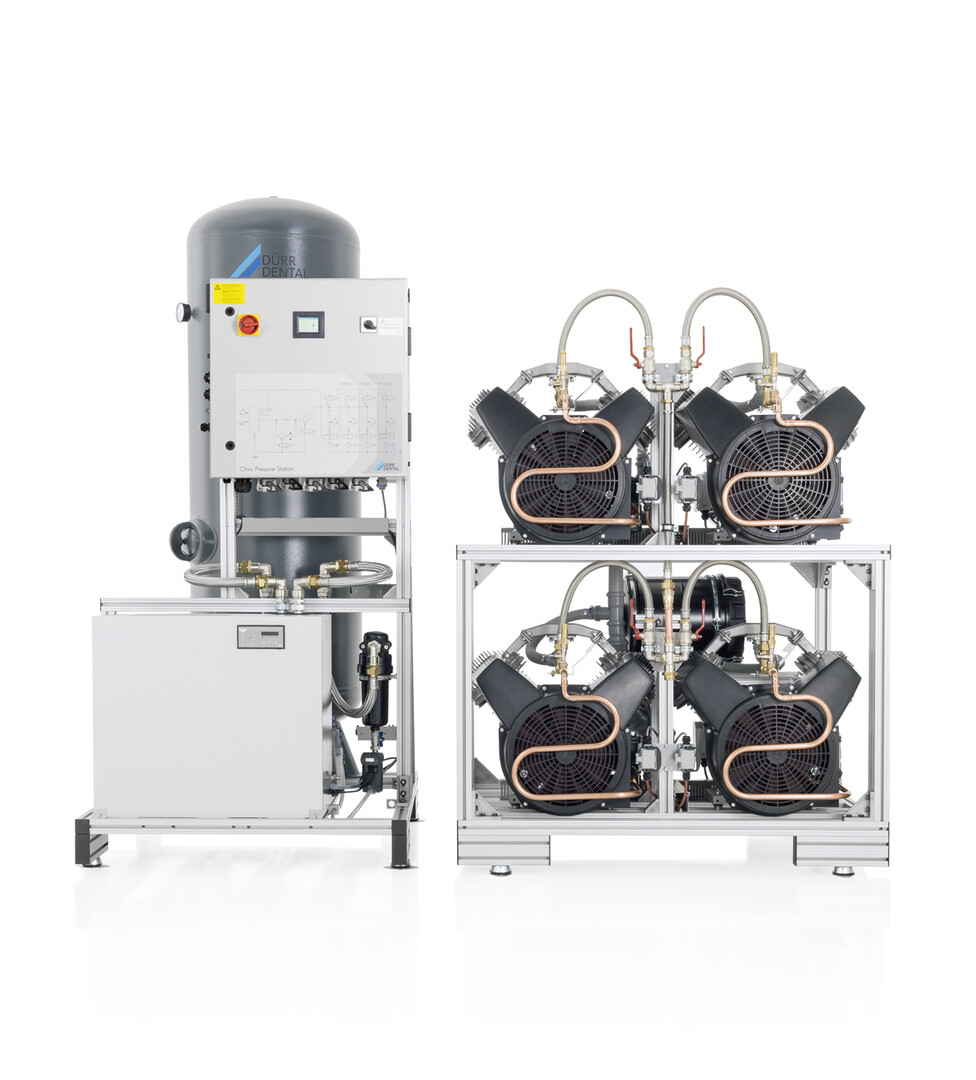

P 12000

For up to 130 workstations with max. 80 users at the same time.

2807/3305
Delivery at 5 bar(l/min)

6 - 8
Pressure range(bar)

91,6/94,3
Noise level dB(A)

Technical Data

P 6000 P 9000 P 12000
Delivery at 5 bar1(l/min) 1411/1685 2175/2479 2807/3305
Pressure range2(bar) 6 - 8 6 - 8 6 - 8
Noise level dB(A) 89,5/91,7 90,6/93,1 91,6/94,3
Voltage (V)3 400 400 400
Tank capacity (l) 500 500 500
Frequency (Hz) 50/60 50/60 50/60
Noise level at 5 bar with housing dB(A) 78,8/81,4 79,0/80,9 80,9/82,3
Dimensions (H x W x D cm) 240 x 350 x 280 240 x 350 x 280 240 x 350 x 280
Weight (kg) 308 474 605

Delivery with drying unit

An optional pressure reducer is available

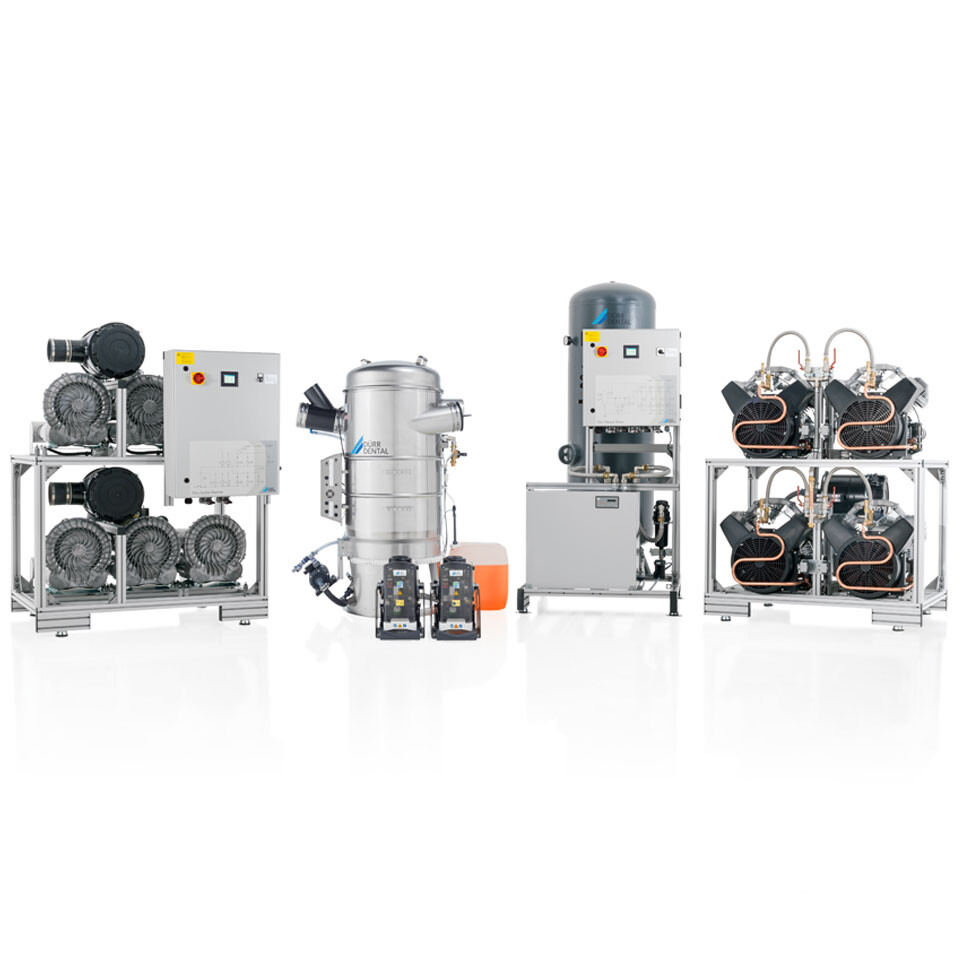

Clinic Solutions
Choose a successful partner for your project today

Are you looking for an experienced partner who is an expert on the special challenges posed by dental clinic projects? As a leading manufacturer we provide solutions for large practices as well as for dental clinics and universities with several hundred treatment and simulation workstations.
