EGO Series
Steam Infusion

Unique steam diffusing solution ensures an evenly heating up inside the sterilization chamber.

Unique air-water separating system
Unique air-water separating system enhances system efficiency and reliability.

“HAFC” Hot Air Forced Circulation
HAFC system (Hot Air Forced Circulation) improves the dry efficiency significantly

“POST-DRY” program delivers extra-dry
Original POST-DRY program delivers extra-dry and cool instruments even without opening the door.

steam-infusion
Excellent Traceabilit

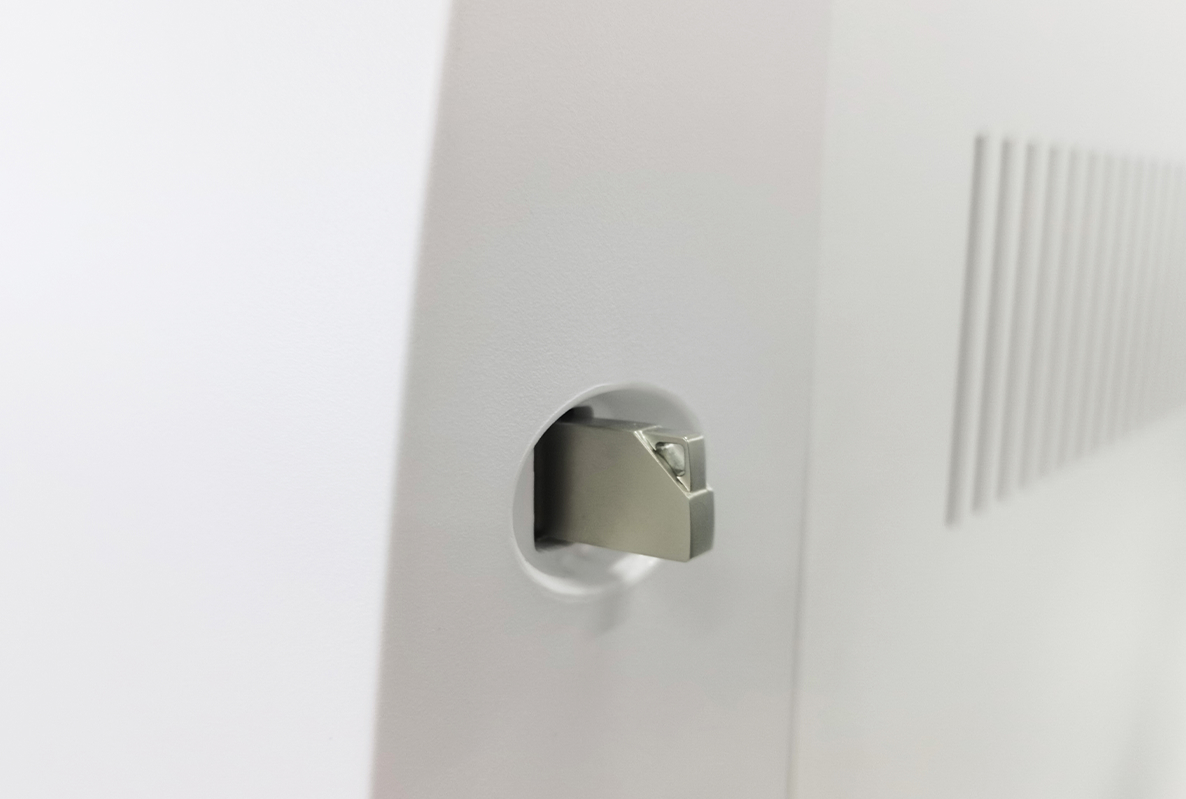

Large capacity data logger
Standard large capacity USB disk can store more than 1 million sterilization records.

Built-in printer
Built-in printer automatically prints the sterilization data and result at the end ofeach cycle.

Barcode label printer (optional)
Ensures the identification and traceability of every single sterilization pack.

barcode-label-printer
large-capacity
Ergonomic design

Color touch screen
·Color touch screen with excellent sensitivity and intuitive navigation.

Showing the data of the sterilization cycle progress and errors in real time.

Waste water discharge
Automatic: connect the pipe to the outlet at the back, waste water will be discharged automatically.

Manual: connect the pipe to the outlet in the front panel to dischargethe waste water manually when the warning message pops up on thedisplay.

color-touch-screen
waste-water-discharge

Servo-assisted electric door
EGO 17B+, EGO 23B+ are our servo-assisted electric door model, easy and extra-safe.

Super large clean water tank
5L built-in clean water tank allows the user to perform 10 sterilization cycles.
Built-in water quality sensor and built-in float switch.

servo-assisted
super-large
Product model

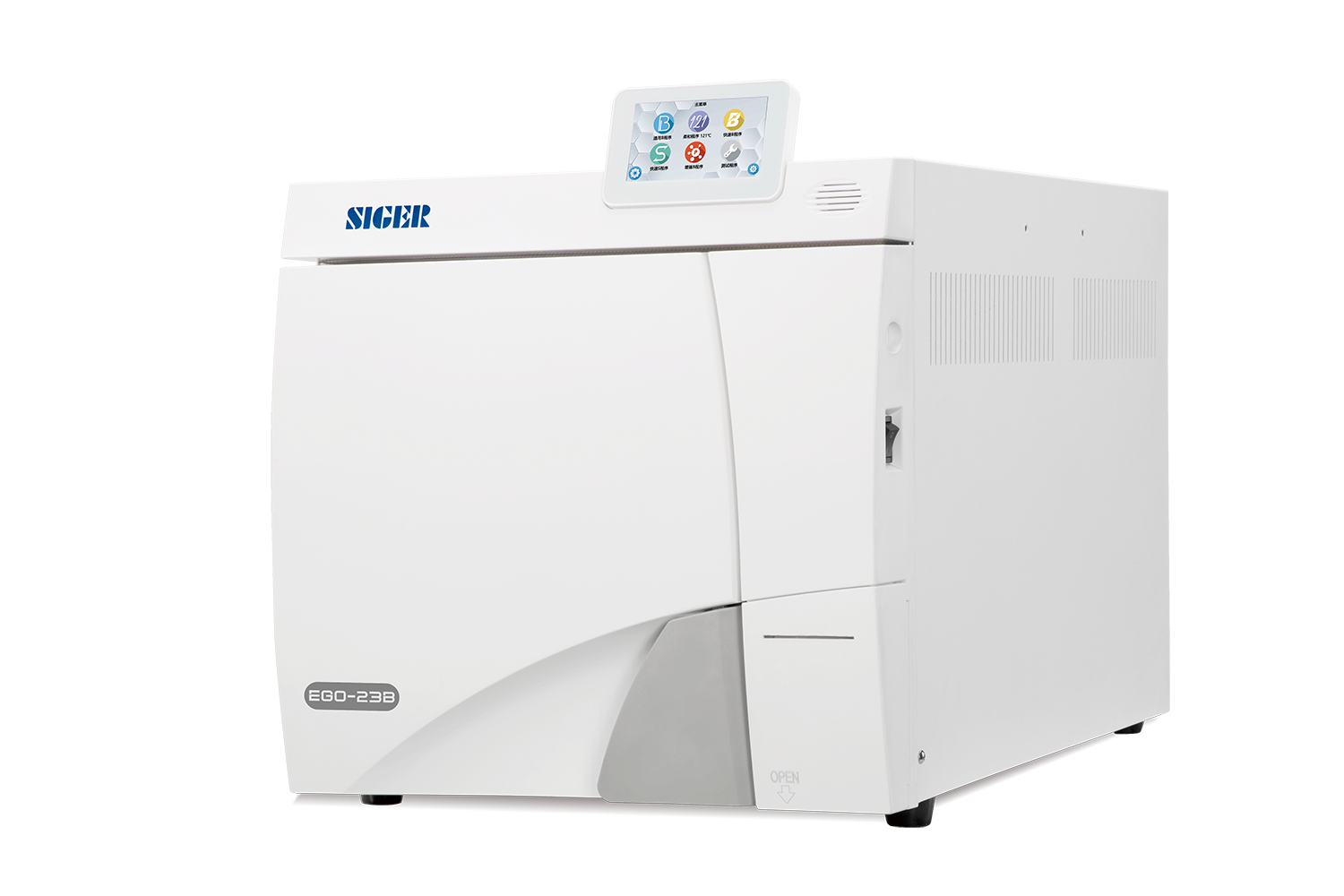

EGO-23B+

EGO-23B+

EGO-23B

EGO-23B

EGO-17B+

EGO-17B+

EGO-17B

EGO-17B

Technical Specifications
EGO Series
Model EGO-17B - EGO-17B+ EGO-23B - EGO-23B+ AMI-17B AMI-23B
Voltage/Power 230V-2200W 230V-2300W 230V-2200W 230V-2300W
Chamber size 17L 23L 17L 23L
External dimension 620x520x450mm 720x520x450mm 620x460x450mm 720x460x450mm
Net weight 48 kg - 48 kg 55 kg - 55 kg 43kg 49kg

Sterilization cyclewith high performance and reliability

European Class B model

European Class B model, with 3-stage pre-vacuum process.

European

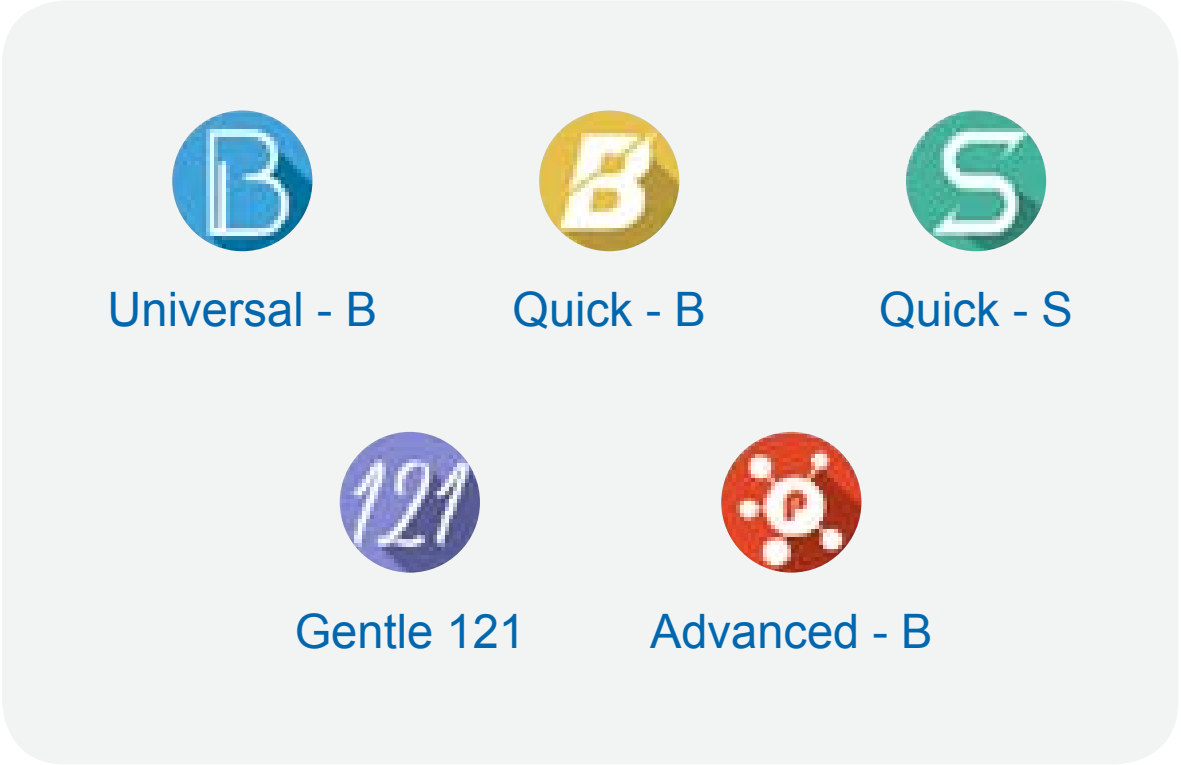

5 sterilization cycles

5 sterilization cycles available to meet different needs.

sterilization-cycles
4 Test Programs

4 test programs onboard which is easy to test the sterilizer performance and working environment.

Test-Programs
“THT”process validation system

THT process validation system monitors the temperature and pressure in real time, thus ensures the validity of the sterilization.

THT
Headline Four

Universal RS-232 serial port allows the user either to connect the autoclave to a label printer, or to a PC to monitor and test the validation of the sterilization cycles.

Headline-Four
Auto-start cycle

Auto-start cycle enables the user to start a cycle at any specific date/time.

Auto-start cycle
