Power Tower View – Complete practice supply with a minimal footprint

The perfect solution for every requirement

The compact and quiet Power Tower View can be installed flexibly in the surgery with a footprint of just 0.4 m2, saving valuable space over the installation of equivalent separate units – a real advantage given the expense of current rental costs. But there are other reasons that make this unit the perfect fit for any surgery. As impressive as its striking, high-quality design is, in terms of operating noise you will barely notice this unit when it is running. This leaves you free to position the unit anywhere you want in the surgery. Thanks to the many individual configuration options, Power Tower View is a flexible solution that will grow with the surgery and adapt effortlessly to new circumstances.

A solution with options for more

The modular concept of Power Tower View offers flexible options for upgrading and modification. For example, you can retrofit an additional compressor unit in order to boost potential output or create redundancy for increased operational reliability.

One for all – and everything in a single unit

Power Tower View combines a compressor unit, the compressed air tank, the suction unit, the membrane drying unit and – if required – also the amalgam separator into a single, compact unit offering perfect thermal and physical conditions. The modular concept will fulfil numerous individual requirements and allows the system to be set up for up to 4 therapists, providing the perfect solution for any size of surgery.

power_tower_view_feature_aggregat

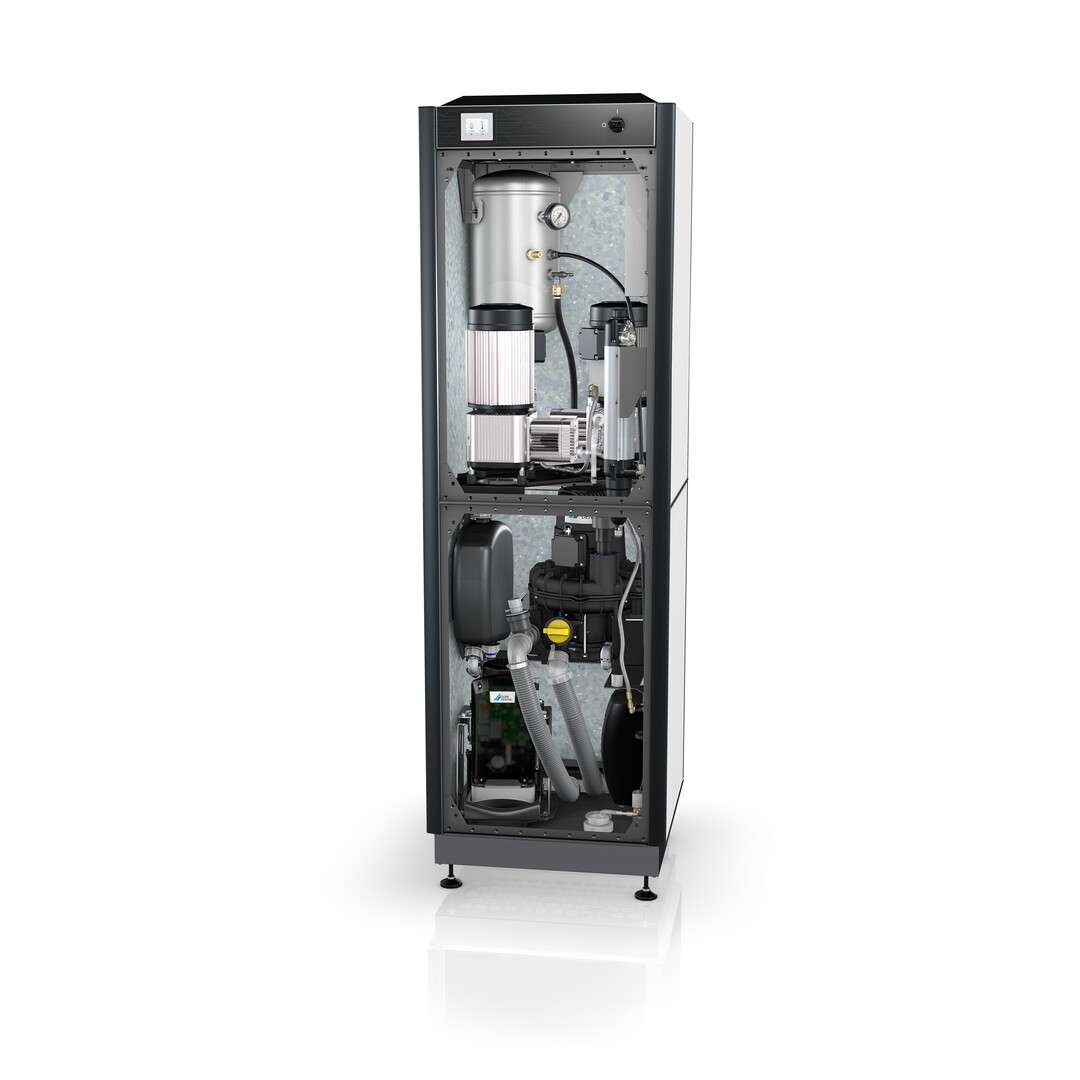

L-DDental_PowerTowerView_offen
Compressed air at the top, suction at the bottom

At the top is where the heart of the surgery beats: this is where the powerful and durable compressor reliably delivers oil-free, dry and hygienic compressed air. The effective Dürr Dental suction systems – in either dry or wet variants – for continuous and ergonomic treatments safe from the risk of infection are housed at the bottom.

The air quality of our compressors in the Power Tower View complies with the requirements of the new ISO 22052 for dental compressed air. Special components including a membrane drying unit and bacteria filter ensure that the compressed air is dry, hygienic and free of oil – helping to ensure the best possible results for your work. The Power Tower View is also certified as a Class IIa medical device in accordance with the MDR (EU 2017/745).

Amalgam collecting container fill level in view at all times – with the VistaSoft Monitor

With the IoT solution for your networked practice, you can always keep an eye on the fill level of your amalgam separator. When a fill level of 95% is reached, you will receive a notification on your PC or mobile device, giving you enough time to change the container.

Power Tower View V 600

The basic variant of Power Tower View is probably the most flexible solution for 2 users, combining a minimal footprint with a V / VS 600 and Duo units.

2
Number of operators

Duo
Compressor


2nd unit (optional)

Power Tower View V 900 S

The basic variant of Power Tower View is probably the most flexible solution for 3 users, combining a minimal footprint with a V / VS 900 S and Duo units.

3
Number of operators

Duo
Compressor


2nd unit (optional)

Power Tower View V 1200 S

Outstanding performance and a small footprint are offered by the suction unit V/VS 1200 S combined with 2 Duo units for 4 users.

4
Number of operators

Duo
Compressor


2nd unit (optional)

Technical Data

Power Tower View V 1200 S
Power Tower View V 1200 S Power Tower View V 600 Power Tower View VS 600 Power Tower View VS 900 S Power Tower View VS 1200 S Power Tower View V 900 S
Number of operators 4 2 2 3 4 3
Compressor Duo Duo Duo Duo Duo Duo
2nd unit (optional)
Amalgam separator (optional) No No Yes Yes Yes No
Output at 5 bar (l/min) with 1 unit 115 115 115 115 115 115
Output at 5 bar (l/min) with 2 units 230 230 230 230 230 230
Noise level [dB(A)] at an ambient temperature of 35°C 56 56 56 56 56 56
Voltage (V) 400 230 230 230/400 400 400
Frequency (Hz) 50 50 50 50 50 50
Dimensions (H x W x D cm) 208 x 64 x 61 208x64x61 208x64x61 208 x 64 x 61 208 x 64 x 61 208 x 64 x 61
Weight (kg) 265 265 275 275 275 265
