High-performance intraoral suction – reliable at 300 l/min

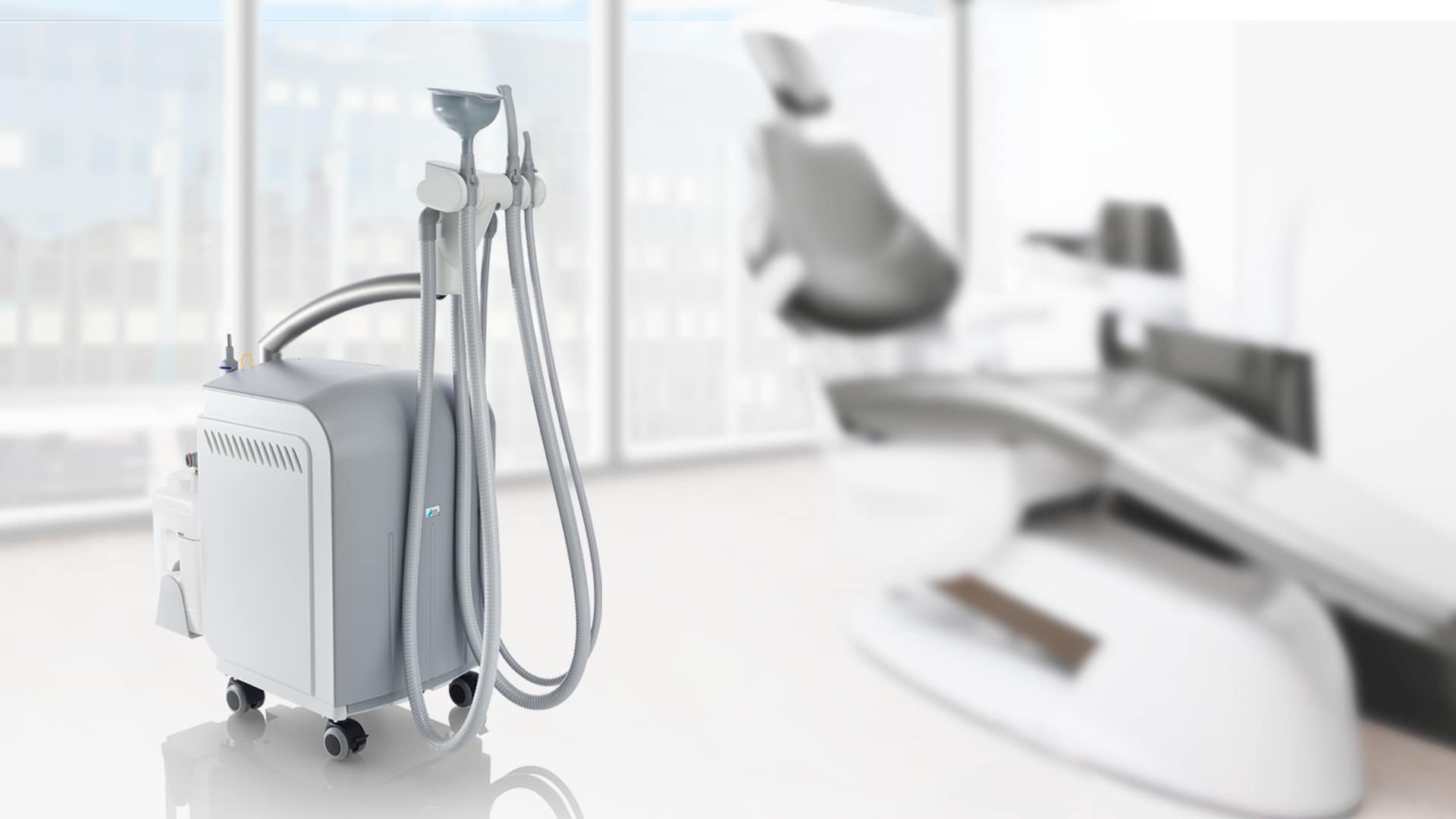

Variosuc – mobile and flexible spray mist suction system

Depending on the practice requirements or the area of application, adequate protection against infection must be ensured, particularly by means of highly efficient suction of germ-laden aerosol. In addition, our devices are certified as Class IIa medical devices in accordance with the MDR (EU 2017/745). They therefore fulfil all regulatory requirements and offer you security. With the Variosuc mobile suction unit, DÜRR DENTAL offers a mobile and flexible spray mist suction system that is ready to use straight away anywhere in your dental practice – with no need for prior installation. Simply plug in and get started! This means that even if conditions are challenging you can still rely on the benefits of a highly efficient suction system from DÜRR DENTAL. If it is difficult to install a fixed suction system in your dental practice then the Variosuc can also be permanently used as a stationary solution, e.g. in the prophylaxis room.

A suction volume of 300 l/min is mandatory

Without this kind of suction system, the cooling spray from fast-running and ultrasonic instruments can cause an aerosol cloud to spread throughout the entire treatment room. Thanks to suction systems with a suction performance of around 300 l/min, the resulting risk of infection is efficiently reduced. According to a study (source: Tillner, 2016), suction with a powerful spray mist suction system is the only effective way to reduce aerosols.

Integrated exhaust air virus-bacteria filter

For hygienic reasons, we recommend the installation of a bacteria filter in the exhaust air line of the suction system. The Variosuc has a bacteria filter fitted as standard for all-round hygienic suction.

Variosuc_300ml
L-DD_Filter_05
Comfort manifolds

Hose manifolds in dental practices are equipped with various components depending on the treatment focus, personal suction technique and handling. Due to its modular design, the DÜRR DENTAL Comfort hose manifold can be extended individually and is configured for up to five different components.

Variosuc VS

The Variosuc is based on the established DÜRR DENTAL VS technology with separation and vacuum generation on a single shaft.

~54
Noise level dB(A)

90 x 36,5 x 64
Dimensions (H x W x D cm)

31
Weight (kg)

Variosuc VSA

The mobile Variosuc VSA variant combines vacuum generation and separation in a single compact unit.

50
Noise level dB(A)

90 x 36,5 x 64
Dimensions (H x W x D cm)

32
Weight (kg)

Technical Data

Variosuc VSA Variosuc VS
Noise level dB(A) 50 ~54
Dimensions (H x W x D cm) 90 x 36,5 x 64 90 x 36,5 x 64
Weight (kg) 32 31
Voltage (V) 230 230
Frequency (Hz) 50 50/60
Current consumption (A) 2,9 2,9
Vacuum (mbar) 180 180
Number of operators 1 1
Useable volume of secretion collector (l) 3 3
